TELECOM 5G
Parameters | Unit | Specifications |
AOI in Air | degree | 1.8 |

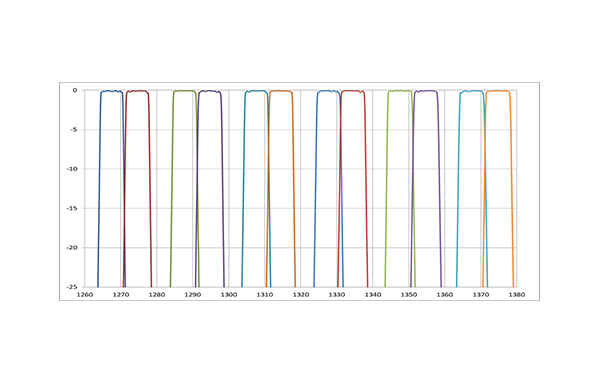

Center Wavelength @ 3dB | nm | 1267.5/1274.5/1287.5/1294.5 /1307.5/1314.5/1327.5/1334.5 /1347.5/1354.5/1367.5/1374.5 |
Center Wavelength Tolerane( 0 deg) | nm | 0.3~0.7 |
Pass Band Width @ 0.35dB | nm | >= ±2.6 |
Stop Band Width @26dB | nm | <= 8.6 |
Isolation within Adjacent Channel | dB | >= 26 |
Ripple within PassBand | dB | <= 0.25 |
Size (Length*Width*Thickness) | mm | TBD |
Wedge Angle | degree | 0.2~0.6 |
Edge/Corner Chip | mm | <= 0.1 |
Scratch/Dig | 60 / 40 |
